Hi-Lo Leveling Trailer
Holstein Manufacturing has a complete line of standard hydraulic loading / lift trailers for a variety of markets. With our hydraulic lift trailers, you can keep an extra worker on the job site because our lift trailers only need one person to load and unload equipment. Holstein?s line of hydraulic loading and lift trailers are extremely customizable with a complete set of options.
Highlights
- Dock Height Loading and Unloading
- Ground Level Loading and Unloading
- Highway Travel
- Tilt Bed for Easy Unloading
Description
Holstein Manufacturing has a complete line of standard hydraulic loading / lift trailers for a variety of markets. With our hydraulic lift trailers, you can keep an extra worker on the job site because our lift trailers only need one person to load and unload equipment. Holstein?s line of hydraulic loading and lift trailers are extremely customizable with a complete set of options.
| Model | LL12 | LL14 | LL16 | 7,000 | 14,000 |
|---|---|---|---|---|---|
| Axle | Tandem | Tandem | Tandem | Single | Tandem |
| Brakes | Electric | Electric | Electric | Electric | Electric |
| Suspension | Rubber Torsion | Rubber Torsion | Rubber Torsion | Rubber Torsion | Rubber Torsion |
| Floor Length | 12′ | 14′ | 16′ | 10′ | 12′, 14′, 16′ |
| Total Length | 21′ | 23′ | 25′ | 15′ | 17′, 18′, 21′ |
| Total Width | 102″ | 102″ | 102″ | 101″ | 101″ |
| Inside Width | 77 _” | 77 _” | 77 _” | 68 _” | 68 _” |
| Empty Weight | 5900 lbs | 6200 lbs | 6500 lbs | 2,580 lbs | 4,110 lbs |
| GVW | 14,000 lbs | 14,000 lbs | 14,000 lbs | 7,000 lbs | 14,000 lbs |
| Ball Hitch | 2 5/16″ | 2 5/16″ | 2 5/16″ | 2 5/16″ | 2 5/16″ |
Rubber Torsion Suspension ? the only one in the industry.
- 5_ Hydraulic cylinder

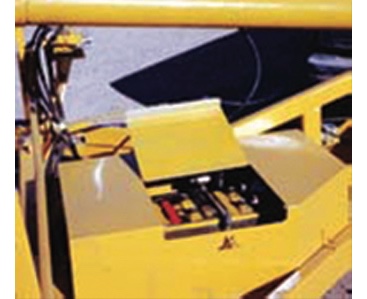

- DC power up & down hydraulic power system
- 12 volt battery (1400 cold cranking amps)
- 4_ x 10_ rectangular tube frame
- Tires LT23585R1686 3750 lbs rating
- Breakaway kit
- 7 wire lighting connector
- Tailgate bar
- Safety latch
- Jack stand

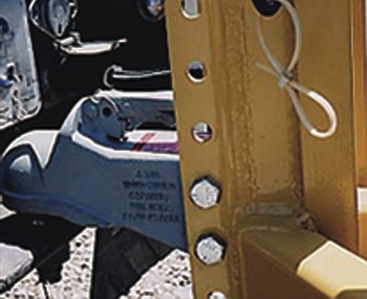

- Adjustable height hitch
- Diamond floor plate

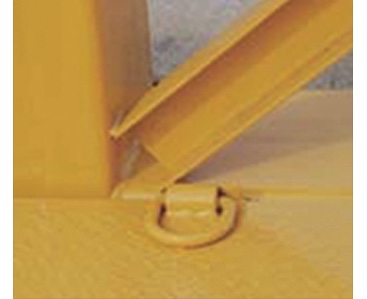

- 8 tie down D rings
- Construction yellow paint (other colors available upon request)
- 12_ ground clearance (loaded)
- Deck lowers level to the ground for ease of loading and unloading
- Deck can be unloaded at any height from ground level to dock height

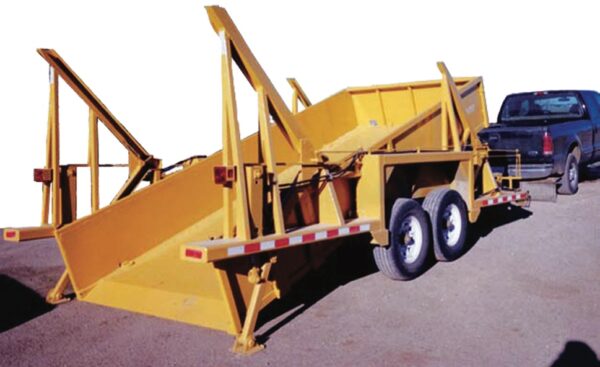

- Deck can tilt at a dumping angle for material unloading
- Two outriggers on frame for loading and unloading stability
- One person needed for loading and unloading
